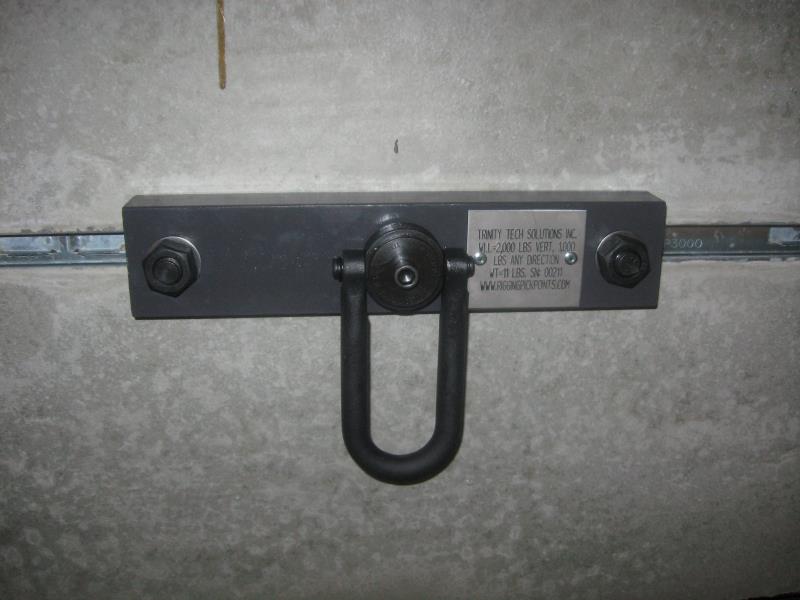

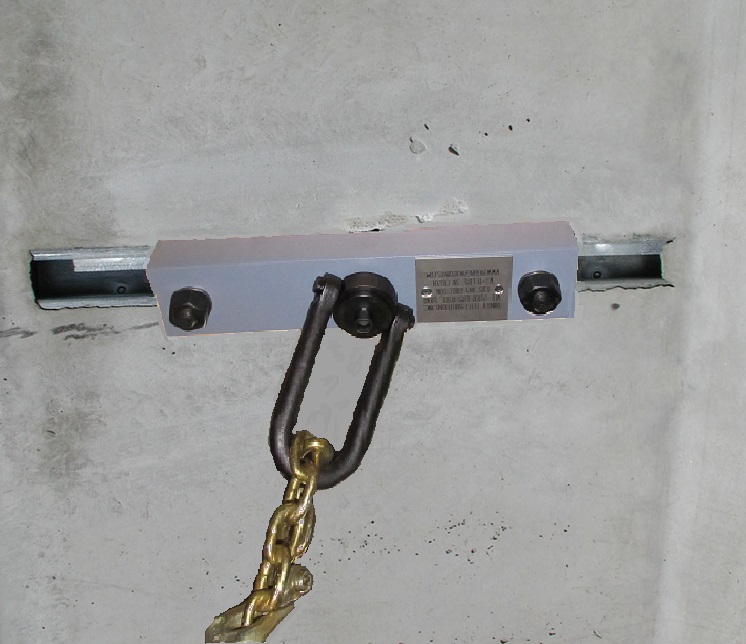

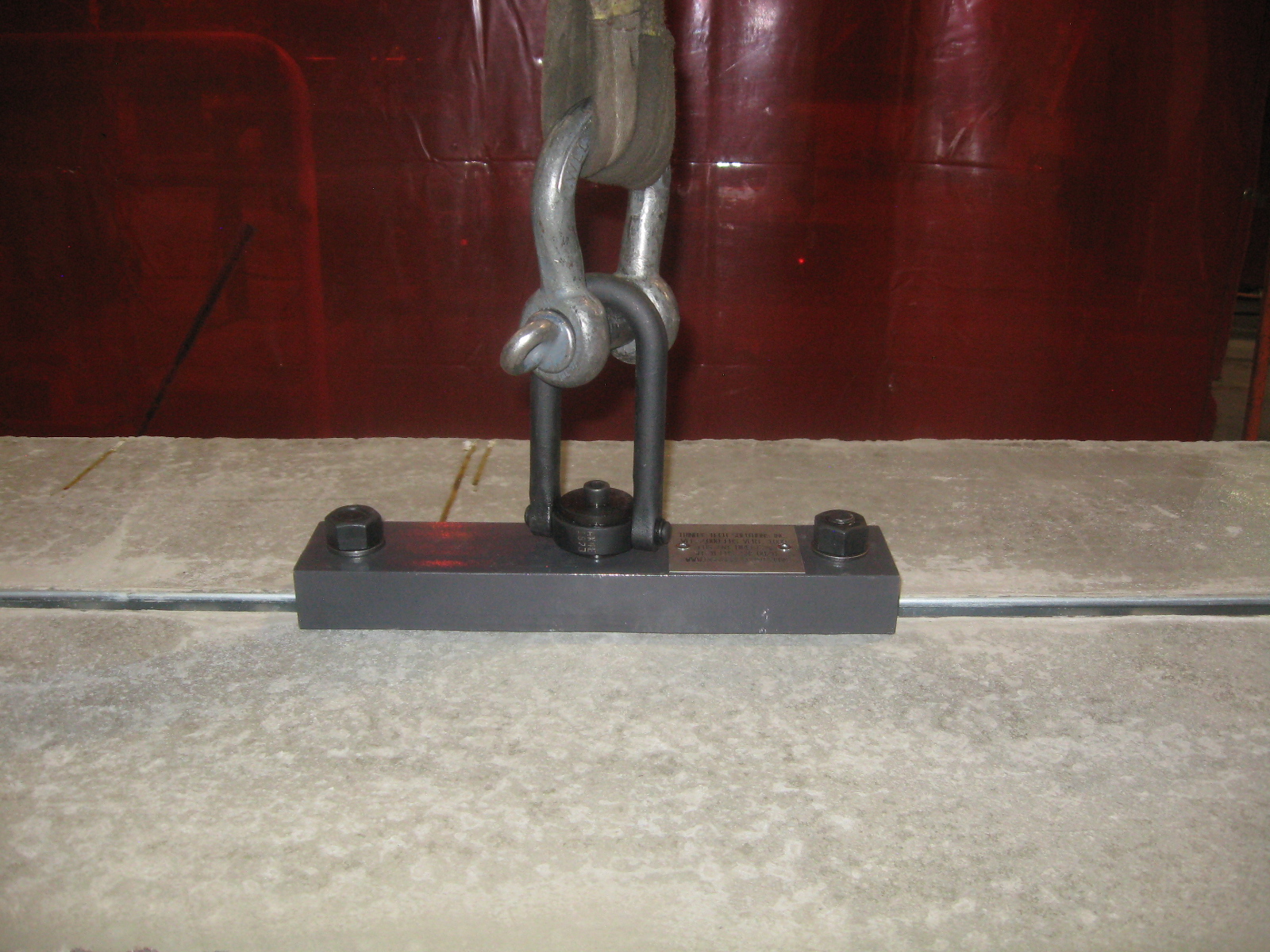

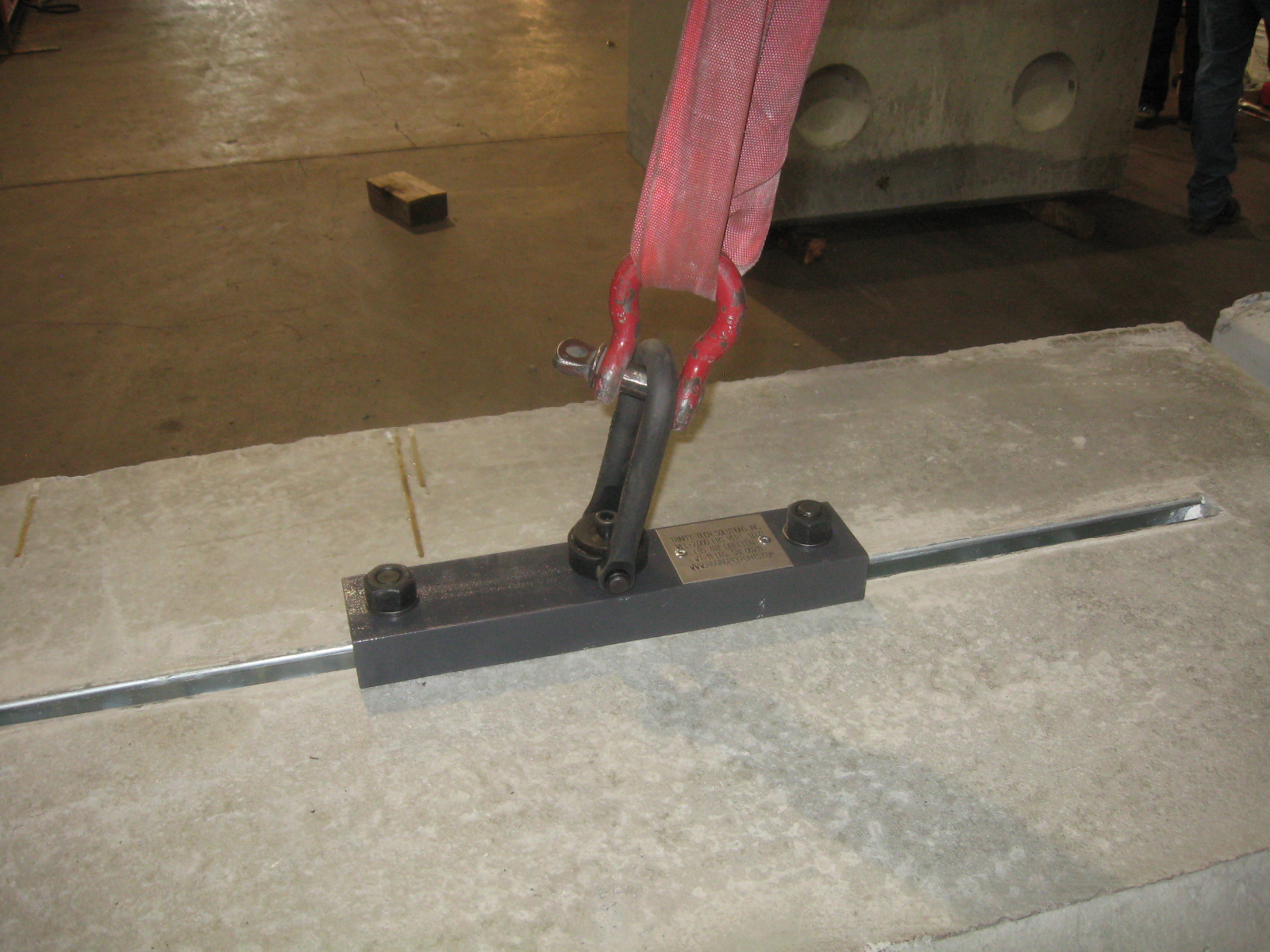

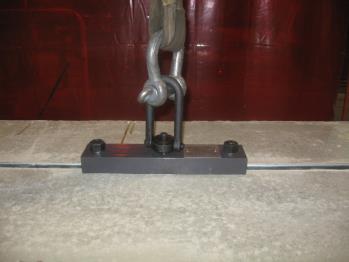

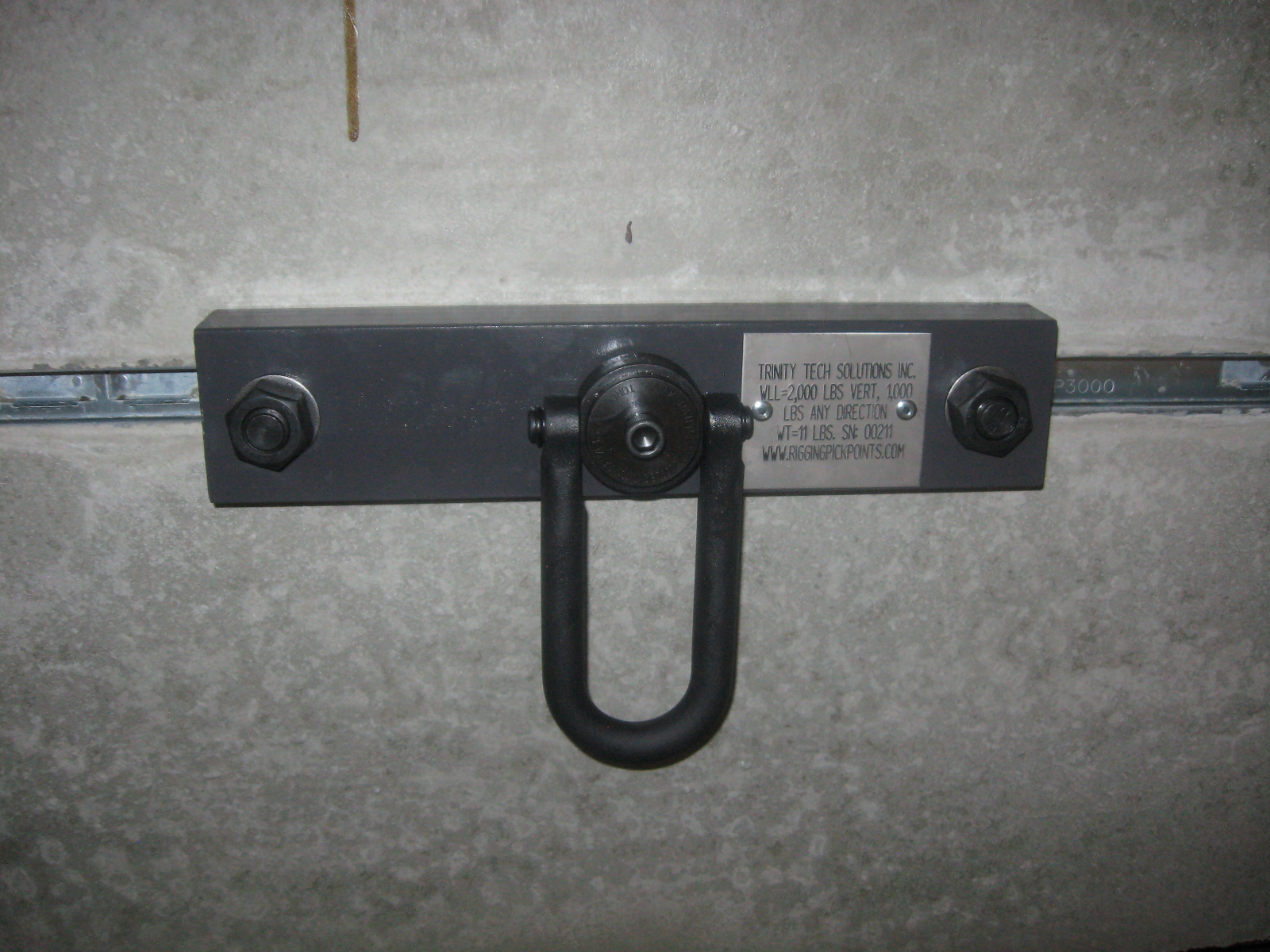

The Strut Rigging Pick Point is a versatile design that allows the user to quickly install a lifting point on Unistrut or similar strut track pre-installed on concrete structures. It has a 2,000 lb WLL vertical and a 1,000 lb WLL in any direction and can be removed and reused as needed in various arrangements.

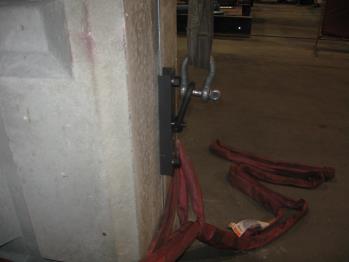

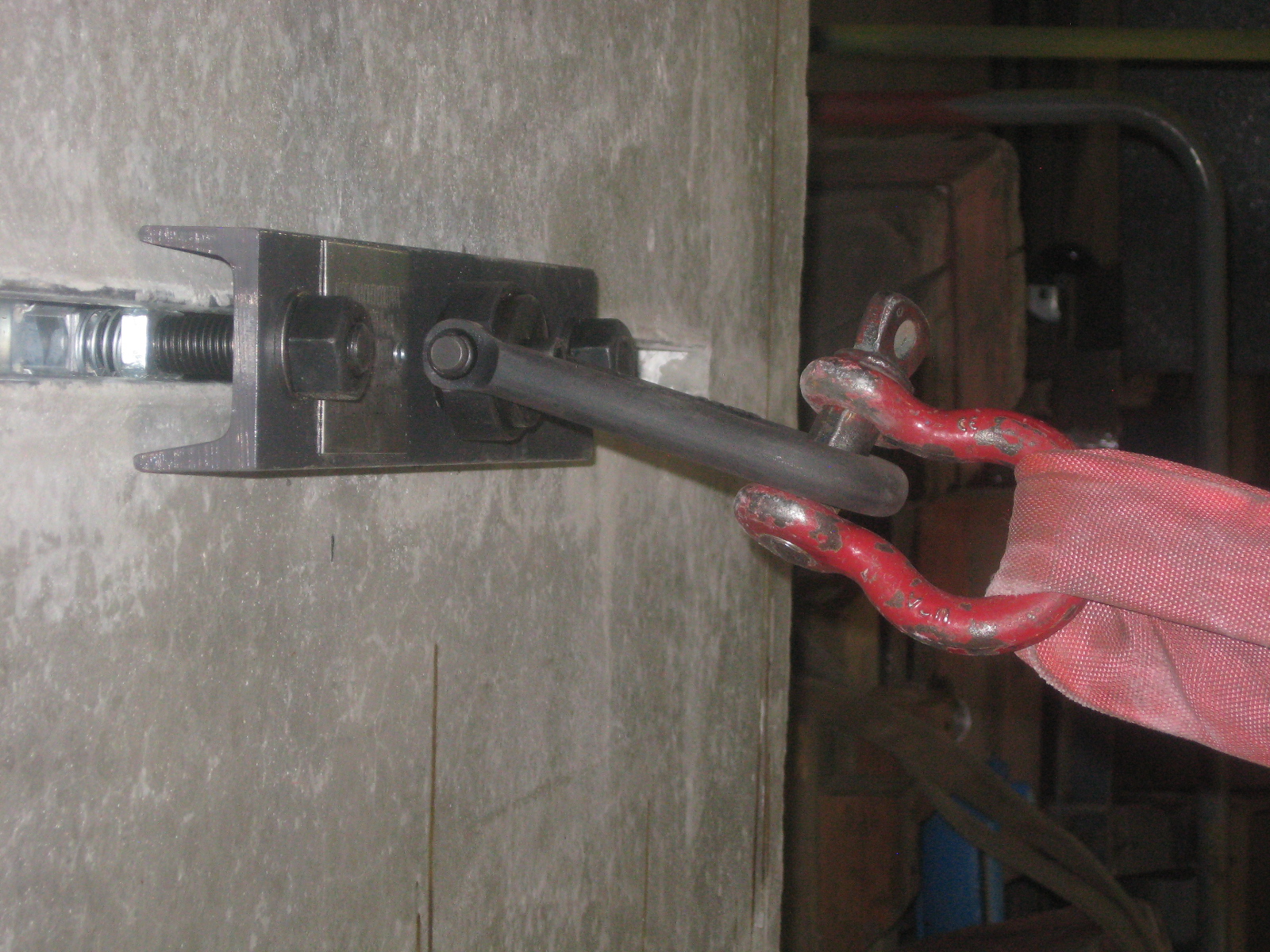

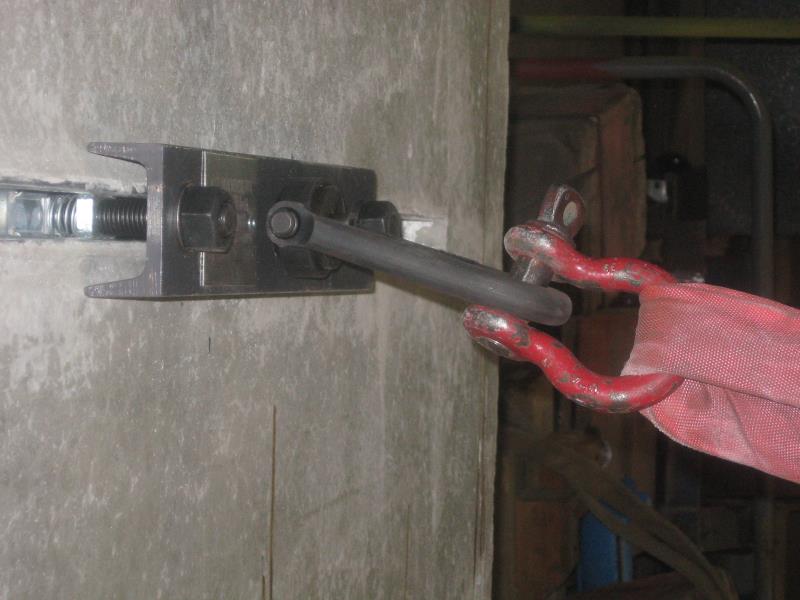

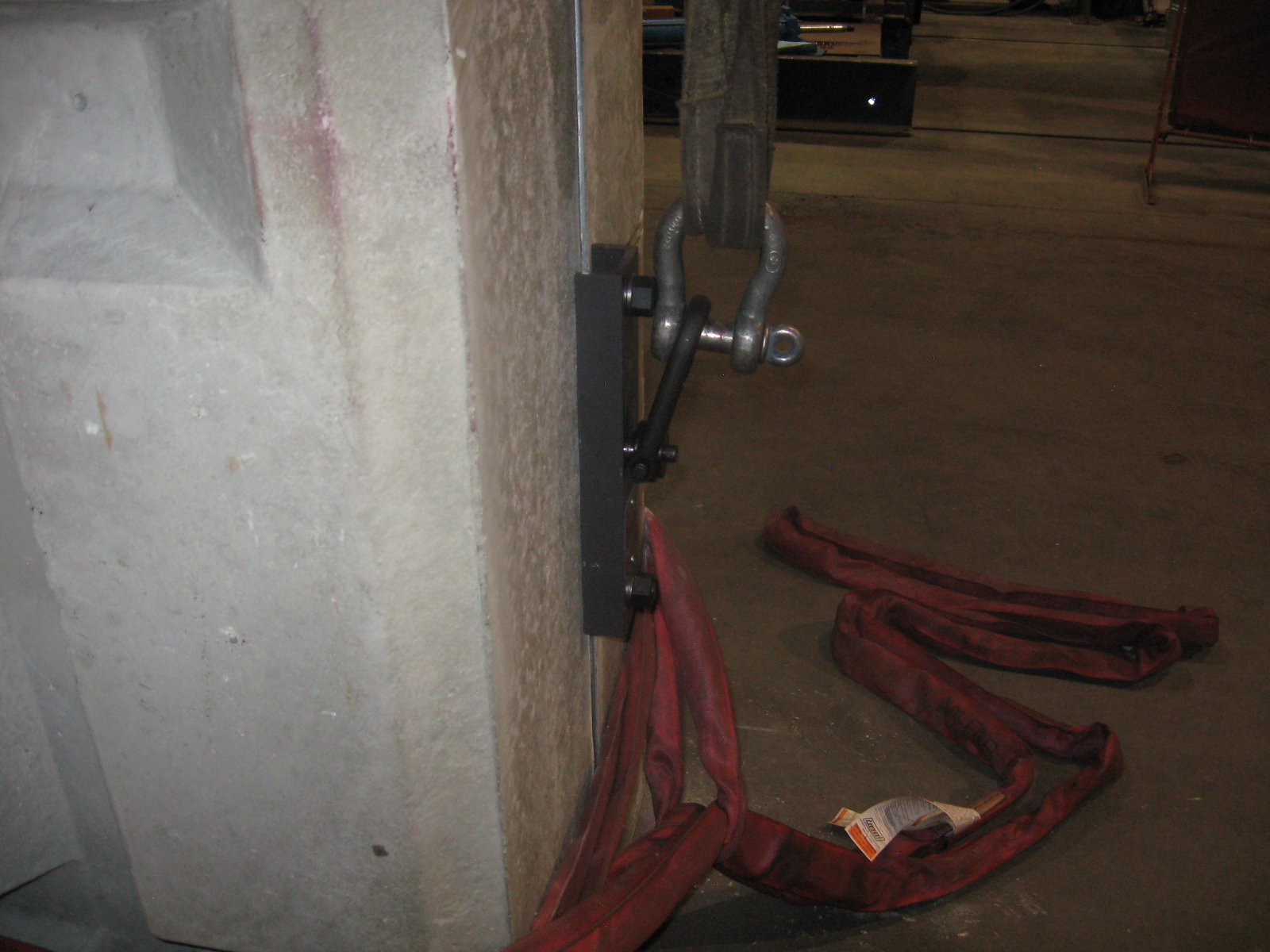

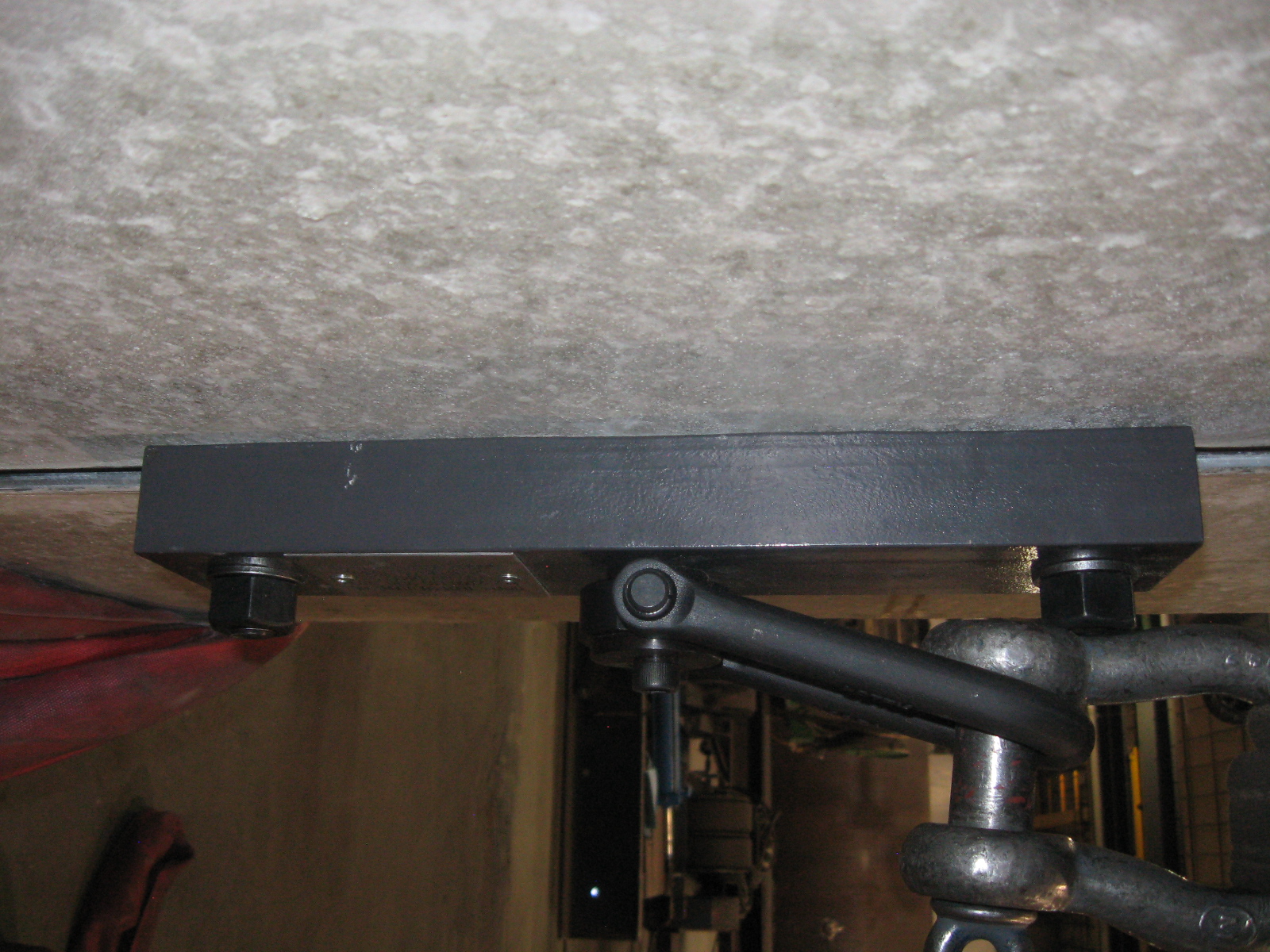

Strut Rigging Pick Points can be used for lifting equipment, to create quick anchor points, for pulling applications or as a bail.
SPECIFICATIONS:
Working Load Limit (WLL) = 2,000 lbs vertical, 1,000 lbs in Any Direction (Assy Only, See Warnings Page)
Load Tested to 125% Vertical, 110% Horizontal In Any Direction
Device is Designed to approximately 1.67:1 based on yield strength per AISC ASD 9th Ed.
Swivel Hoist Ring is designed to 5:1 on ultimate strength and load tested to 2:1 (Meets ASME B30.26)

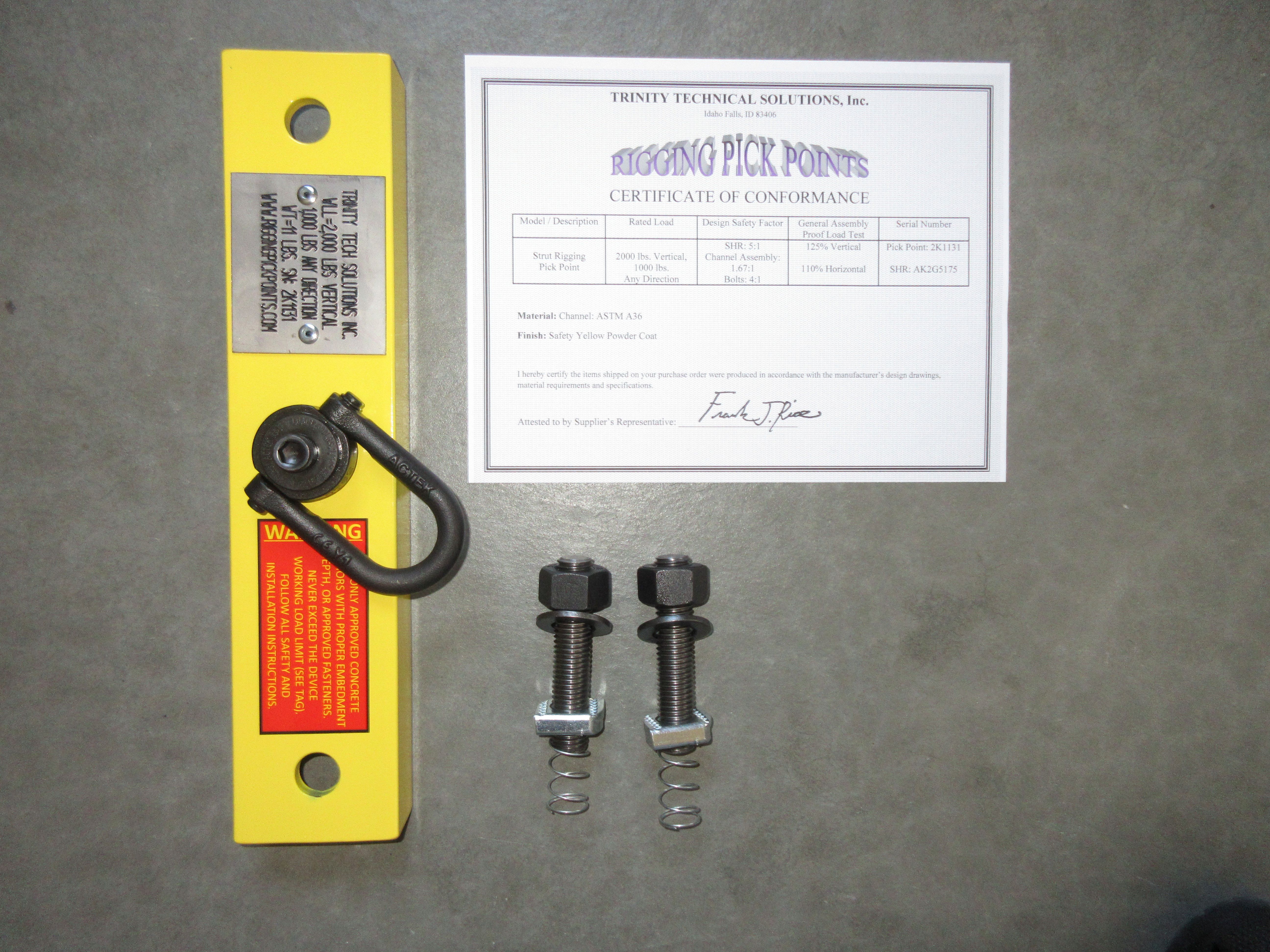

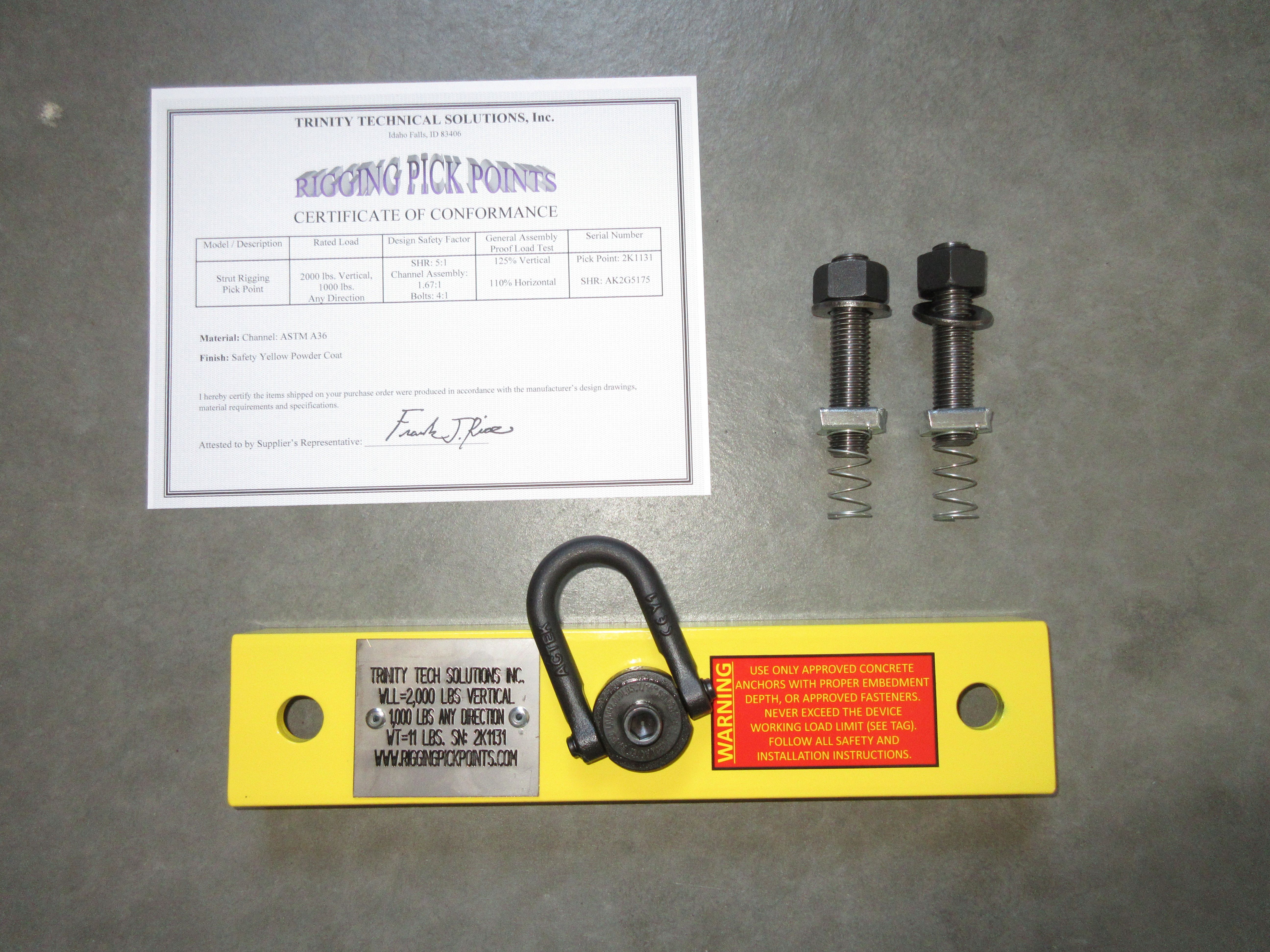

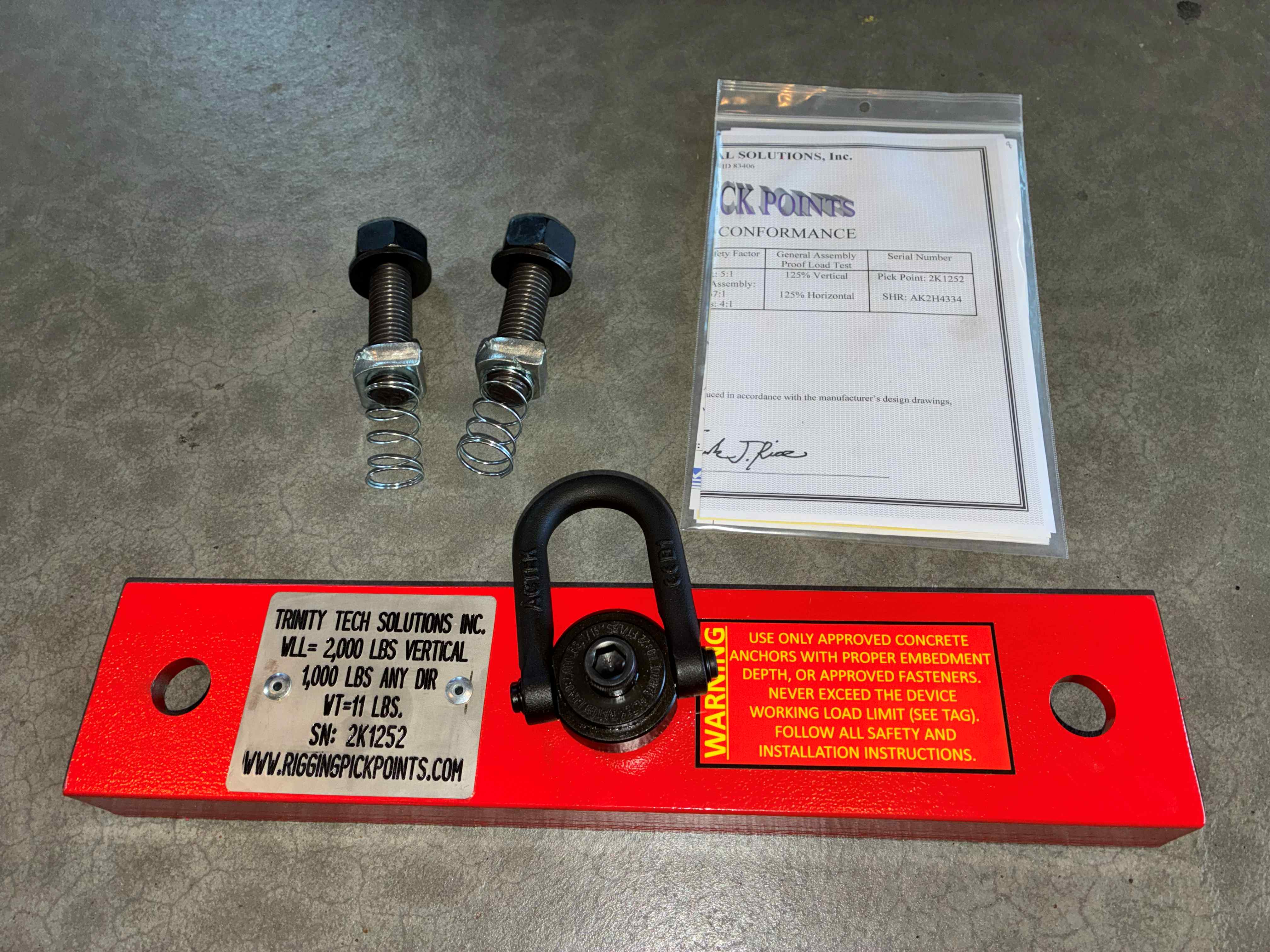

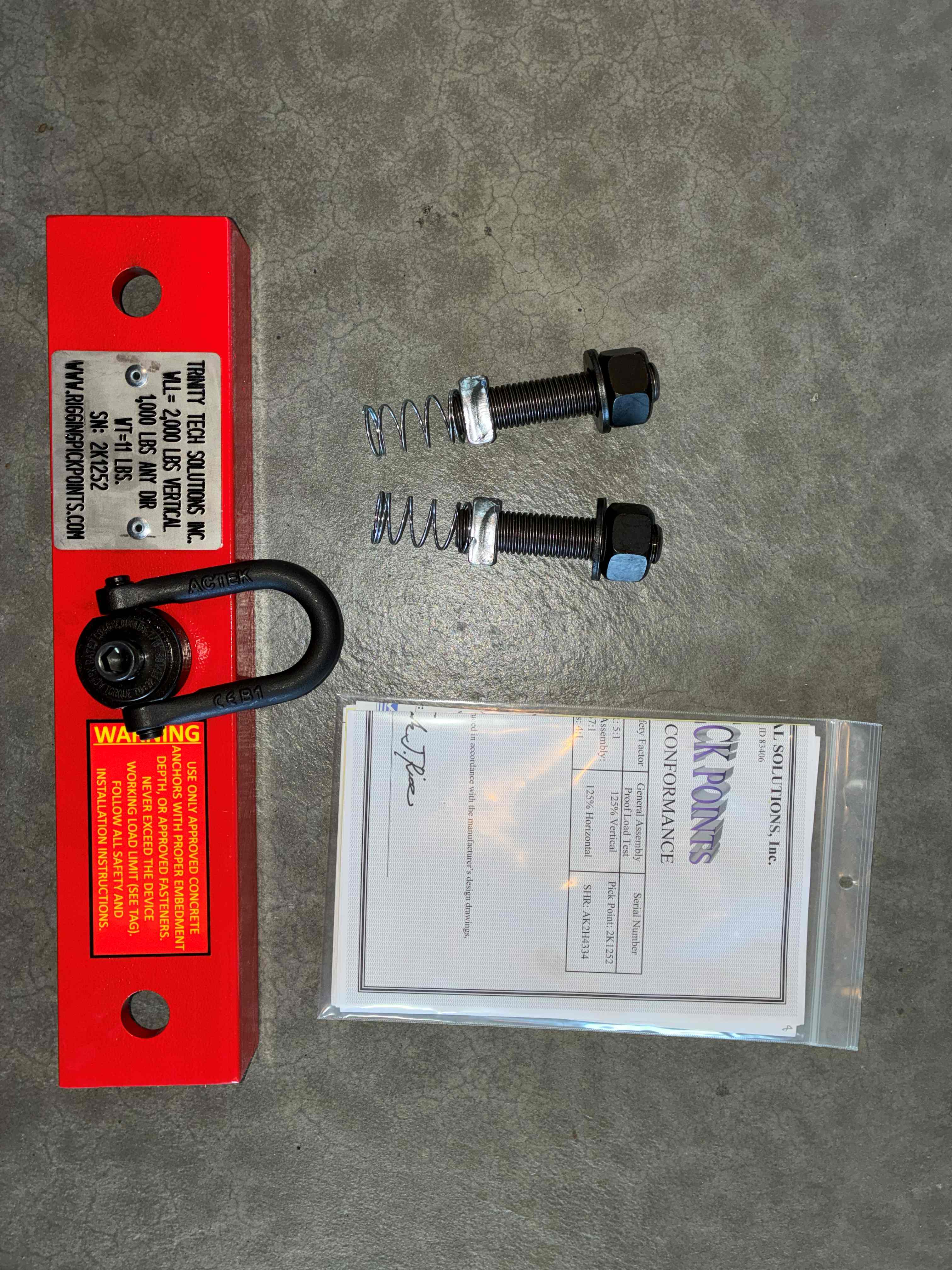

Fastening Type: Threaded Rod with Channel Nut and Spring Assembly
Dimensions: Approximately 3 inches wide x 3.6 inches tall x 14.5 inches long
Assy Wt: Approximately 11 lbs
PART No. 01-07
WARNINGS: See the Rigging Pick Point Warnings page prior to purchase of any Rigging Pick Point.
